XD-WM007-3JX
Heavy Duty TV Cart

OUTDOOR TV CART

Professional steel video conferencing cart is designed for 50'' -75'' monitors. The maximum weight is 150kg/330lbs. MAX, 1200x600 mm VESA compatible, monitor height range 1680 – 2200 mm.

This single display videoconferencing cart adopts fashionable, technical, and functional design to provide reliable demonstration solutions for most LCD flat panel monitors. The free tilt design can easily adjust the angle and reduce the glare of lights or windows for the best viewing comfort. The solid steel base provides a reliable safety guarantee for the product and ensures the long service life.

This model includes front vertical storage box and a rear horizontal storage box, both with secure keylock, rear cable grommet for cable management, and removable rear secured panels with screws, for computers, remote controllers, UPS, regulator, PDU, external microphones, external cameras or accessories.

Its elegant appearance makes it an ideal choice for conferences, public displays, or other professional presentations.


Features of XD-WM007-3JX Heavy Duty Outdoor TV Cart


  • Construction: High quality 100% solid Steel base

  • Oversized shelf: place electronic equipment like cameras, speakers, conference bar, etc.

  • Cable management: provides best finished cabling.


Specifications of XD-WM007-3JX Heavy Duty TV Cart

Product Category:

Description

Material

Steel

Surface Finish

Electrostatic Powder Coating Paint

Color

Fine Texture Black

Dimensions

1310*660*(1680 - 2200)mm

Fit Screen Size

50''- 75''

Orientation

Landscape

Number of Displays

1

Fit Curved Monitors

No

Tilt Angle

-8° to +8°

Storage Box

Yes, front and rear with secure Lock

Horizontal Storage Box

Yes, 800*200*350 mm

Vertical Storage Box

Yes, 600*220*700 mm

Cable Management

Yes

Wheels With Lock

Anti shock 3” heavy duty swivel casters

Mounting Hole Pattern

VESA

Max. VESA

1200x600 mm

Weight Capacity

150kg(330lbs)

Shelf

Yes, Adjustable 600 mm,  for cameras and video conferencing bars.

Shipping Weight

72 kgs

Packing size

745*655*245mm/845*335*225mm(one product packed in two boxes.)

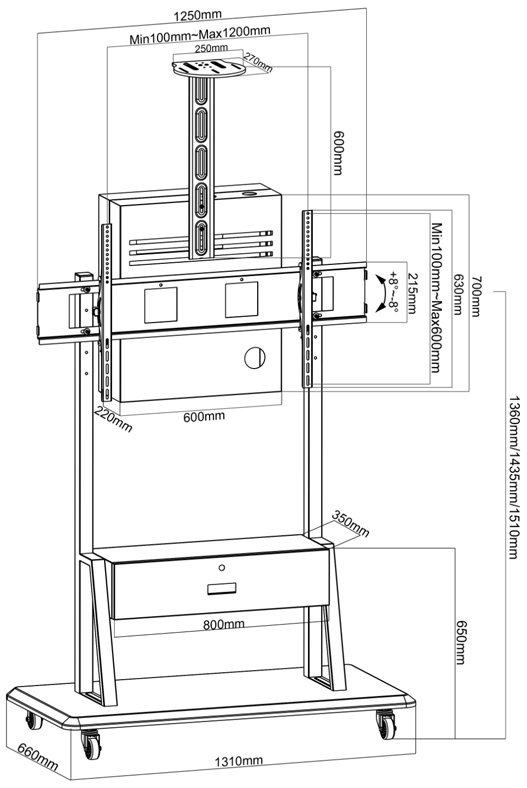

Technical drawings
